F-220 Series CO2 Laser Tube(Laser Part for Laser Machines)

This product has been discontinued and removed from our shelves.

Country of Origin: China
Product Standard: Q/EFR/J 1.1-2015
Certifications: CE certificate, Chinese technical letter patent

Description
F-220 series CO2 laser tube is equipped with US II-IV branded optics, and a discharge tube imported from Germany. Its service life has been significantly extended up to 10,000 hours.

Our laser tube for industrial use features a stable property and a maximum power up to 260W. When compared to ordinary laser tubes, the CO2 laser tube is more compact in size, has a better beam mode, a smaller light spot and a faster cutting speed. F-220 sealed CO2 laser tube has a smaller size with higher power and longer working life. The lower power laser cutter changes only laser tube and power supply and 1st mirror, no need amending machine. Both of cutting speed and cutting thickness have been improved.

Parameters

Model Length (mm) Width (mm) Height (mm) Max Power (w)
F-220-Ⅲ 1875±5 130 163 260

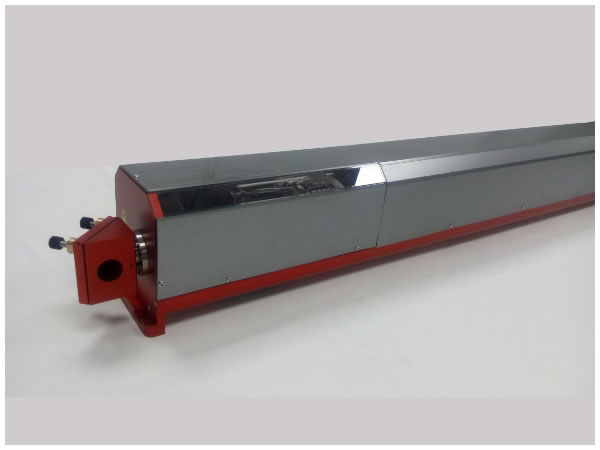

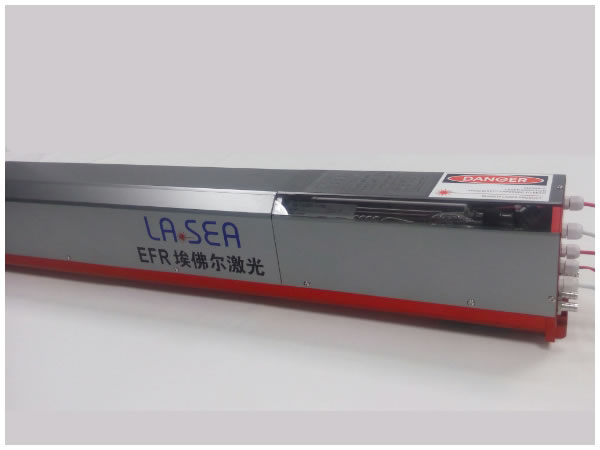

Product Showcase

Features
1. Stable Quality: We import glass tubing from Germany to produce the discharge tube and carry out strict quality control during the firing process.

2. High power: Configured with US II-VI brand fully reflecting mirror and window, the CO2 laser tube has a maximum power up to 260W.

3. Long Service Life: As the discharge tube is electroplated by a catalyst and has electrode that have been treated, the CO2 laser tube can generate a more stable discharge and has a service life up to 10,000 hours. This laser consumable can also maintain an enhanced performance under long-term working conditions.

4. Great Beam Mode: The 220W CO2 laser tube has a high quality laser beam, and stable laser power. Our laser tube has a high cost to performance ratio, and is ideal for industrial applications.

Performance and Application
Carbon dioxide laser tubes are an indispensable part to optical processing machinery, such as laser equipment, including laser engraving machines, laser cutting machines, laser marking machines and more.

With a high power, reliable stability, small light spot, and a long service life, our CO2 laser tube is a laser equipment accessory widely applicable to laser cutting, engraving and marking on leather products, clothes, paper, labels, and other materials in the advertising industry, packaging industry, clothing industry, craftwork processing industry, decorative building material industry and more.

Cutting: The F-220 laser cutting tubes are excellent laser cutting machine accessories, and can be applied to cutting different materials used in advertising, exhibitions, decoration, clothing, leather ware and more, as well as meeting different processing requirements.

Operating Condition
Cooling method: Water cooling
Cooling liquid: clean water;
The CO2 laser requires chiller with cooling function. The chiller should use pure water.
Recommended Model: CW-6000AH (double inlet and double outlet).
Special attention: a single inlet and outlet water chiller can’t be used.
The chiller should be able to control temperature between 15-25℃, and the flow should be more than 13L/min., refrigeration capacity should be more than 3.0KW.
Flow rate: 3-5L/min; Standard water temperature: 10℃-40℃
Ambient temperature: 2℃ -40℃
Ambient humidity: 10-60%

Operating Current

Model Input Current Max. Operating Current Max. Current in long-term operation Service Life Matched EFR Power Supply Triggering
Voltage
F-220-Ⅲ 38mA 38mA and below 35 mA 10,000 hours (operating current ≤ 35mA) PS-N220-Ⅲ 30KV

Quality Guarantee
Service Life: 10000 hours
Warranty: 300 days

1. Within 150 days from exit-factory date on the label, we replace free of charge if the power is less than 80% of rated power while the users operate according to our manual. The replaced laser tube will have same warranty as new ones. The single transportation freight will be afforded by buyer. When the laser tube structure is damaged or changed, we will not be responsible.

2. From 151st days to the 300days from exit-factory date on the label, we repair or replace free of charge if the power is less than 75% of rated power while the users operate according to our manual. The replaced or repaired laser tube will have same warranty as the one which buyer purchased first time from us. The single transportation freight will be afforded by buyer. When the laser tube structure is damaged or changed, we will not be responsible.

3. We are not responsible for damage or problems that occur during the incorrect usage and do not fall in line with the instruction books.
