  • X Series CO₂ Laser Tube
CO₂ Laser Tube
CO₂ Laser Tube CO₂ Laser Tube CO₂ Laser Tube CO₂ Laser Tube CO₂ Laser Tube

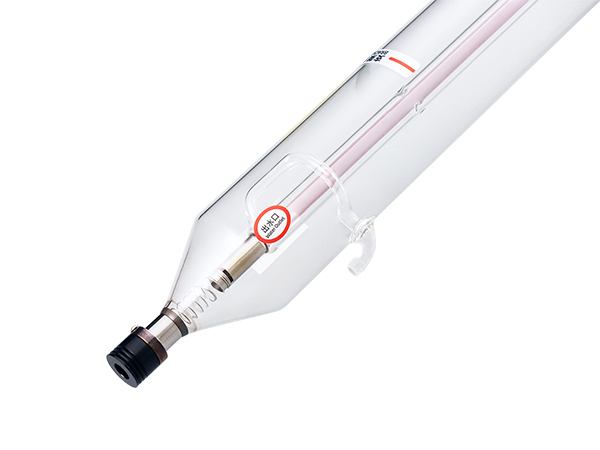

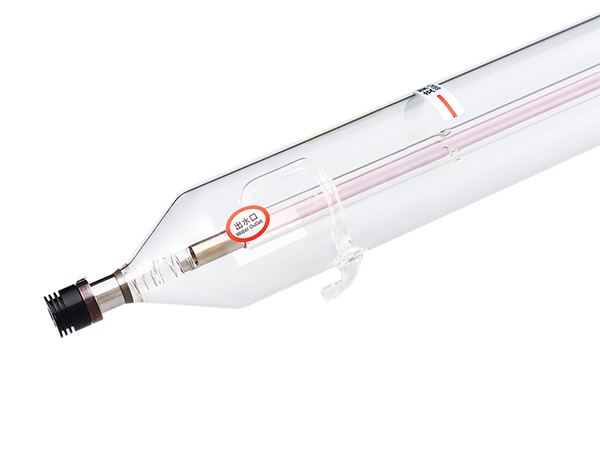

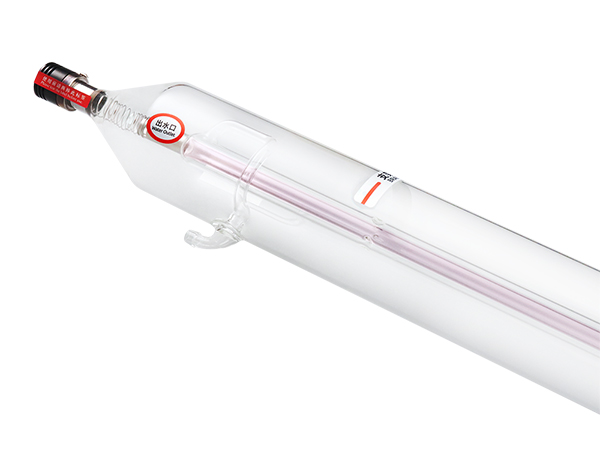

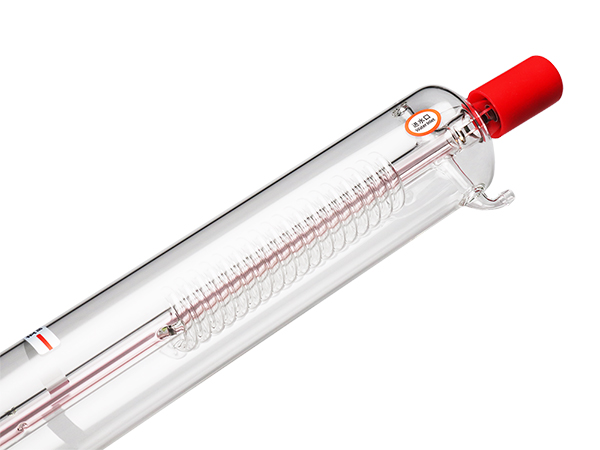

X Series CO₂ Laser Tube (Laser Accessory for Laser Equipment )

  • Product Standard: Q/EFR/J 1.1-2015
  • Certifications: CE certificate, Chinese technical letters patent
  • Diameter: ⌀80±2 (mm)
  • Rated Power: 75-150 (W)
  • Peak Power: 90-180 (W)
Request a Quote
  • Parameters
  • Features
  • Application
  • Operating Condition
  • Package
Parameters
Model Length(mm) Diameter(mm) Rated Power(W) Max Power(W) Warranty(day) Catalyst
X1 1100±20 Φ80±2 75 90 540 Yes
X2 1250±20 Φ80±2 90 100
X4 1400±20 Φ80±2 100 130
X6 1650±20 Φ80±2 130 160 360
X8 1850±20 Φ90±2 150 180
Features
  • This CO₂ laser tube uses direct glass-metal sealing technology to effectively avoid gas leakage.
  • The company produces industrial-grade laser tubes with stable laser beam quality, providing innovative application solutions for users worldwide.
  • The cavity laser lens is independently developed and designed by our company and produced by II-VI factory in accordance with global optical standards.
  • The catalyst contained laser tube uses non-tunable cavity and advanced glass to metal-seal technology, ensuring the laser has a long service life up to 18 months.
  • The application of glass to metal sealing technology avoids the output mode change caused by the deformation of the laser cavity and ensures that the CO₂ laser tube has very high stability.
  • Strict quality process control - the use of imported spectrometer and power meter to ensure that each laser tube has high power, good spot quality, and achieves the quasi-TEM00 basic mode.
Application

EFR's high power, durable and stable CO₂ laser tubes have a small light spot and can be used as laser cutting machine accessories, laser engraving machine accessories, and laser marking machine accessories. As they play an important part in cutting, engraving and marking of leather products, car seats, clothes, paper, and other products in the advertising, packaging, craft processing, decorative construction material industries, our laser consumables are widely recognized and popular among numerous manufacturers of laser machines.

  • Laser Engraving Fabric Laser Engraving Fabric
  • Laser Cutting Metal Laser Cutting Metal
  • Laser Engraving and Cutting Wood Laser Engraving and Cutting Wood
  • Laser Cutting Acrylic Laser Cutting Acrylic
  • Laser Engraving and Cutting Acrylic Laser Engraving and Cutting Acrylic
  • Laser Cutting Paper Laser Cutting Paper
Operating Condition
  • Cooling method: Water cooling
  • Cooling liquid: clean water
  • Flow rate: 3-5L/min
  • Standard water temperature: 10℃-40℃
  • Ambient temperature: 2℃ -40℃
  • Ambient humidity: 10-60%
Package Size
Model Packing Dimensions (L*W*H)(cm) Net Weight (kg) Gross Weight (kg)
X1 Single Packing 139*26*24 2.2 5.16
X2 Single Packing 154*26*24 2.4 5.7
X4 Single Packing 169*26*24 2.9 6.4
X6 Single Packing 194*34*31 3.3 8.7
X8 Single Packing 214*34*31 4.3 9.5
