DF Series CO₂ Laser Tube

  • Product Standard: Q/EFR/J 1.1-2024
  • Certifications: Chinese technical letters patent
  • Diameter: ⌀80±2 (mm)
  • Rated Power: 170-200 (W)
  • Peak Power: 190-220 (W)
Request a Quote
Parameters
Model Length (mm) Diameter (mm) Output Power (W) Max. Power (W) Catalyst Warranty
DF18 1850±20 ⌀80±2 170 190 Yes 360 days
DF22 2250±20 ⌀80±2 200 220
Package Size
Model Packing Dimensions (L*W*H)(cm) Net Weight (kg) Gross Weight (kg)
DF18 Single Packing 221*32*34 4.5 9
DF22 Single Packing 242*32*34 5 10.55
Operating Condition

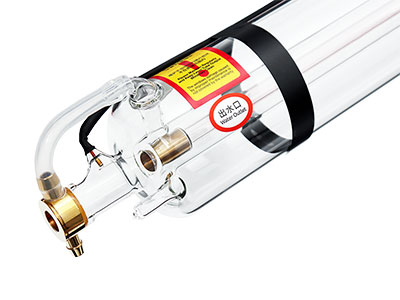

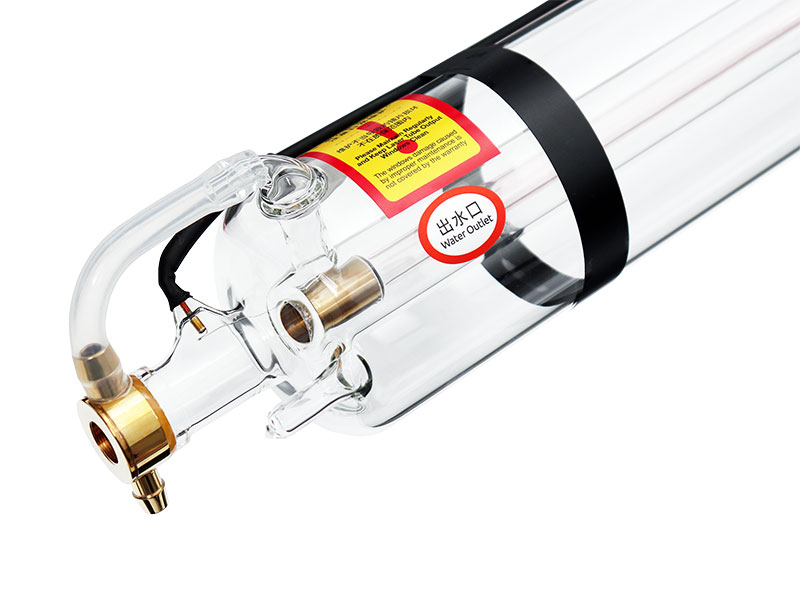

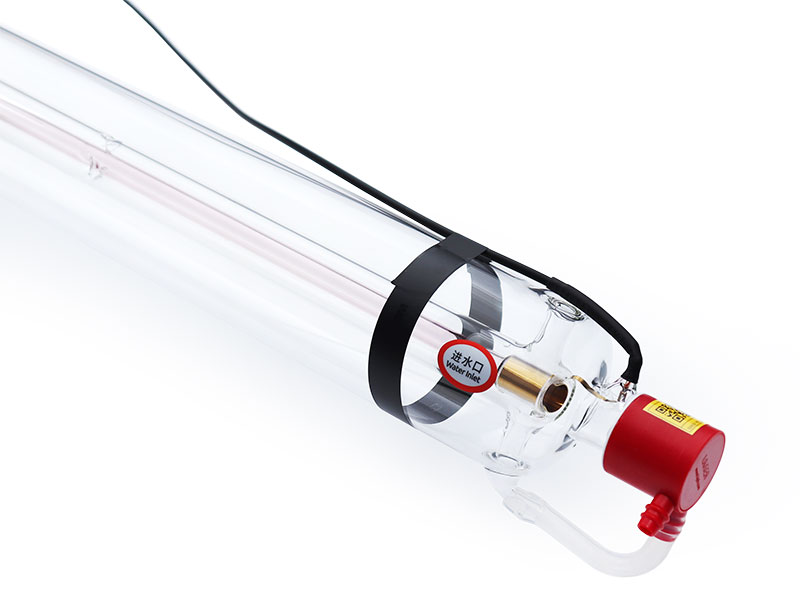

  • Cooling method: Water cooling
  • Cooling liquid: clean water
  • Flow rate: 3-5L/min
  • Standard water temperature: 10℃-40℃
  • Ambient temperature: 2℃ -40℃
  • Ambient humidity: 10-60%
Features

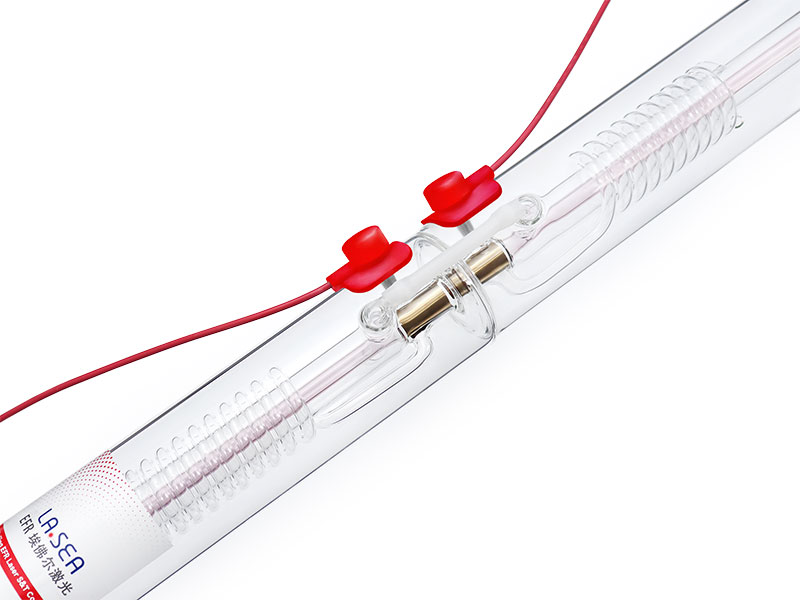

  • CO₂ laser tube features a coaxial concentric multi-segment structure. High voltage is positioned in the center of the laser, while low voltage is placed on both ends of the laser. This achieves segmented discharge, and greatly reduces starting and operating voltage. Therefore, the working efficiency is significantly improved due to increased output power.
  • The CO₂ laser tube with the multi-segmented structure integrates the advantages of various types of laser tubes including low, medium and high power. It's characterized by quick response, small laser spot size, high output power, high stability, etc. These features make it a great choice in cutting, marking, and engraving on various materials in different industries.
  • Designed with a high voltage protection device, dust and moisture can be greatly prevented. With prolonged service life, this CO₂ laser tube can be used in various complex industrial working environments.
