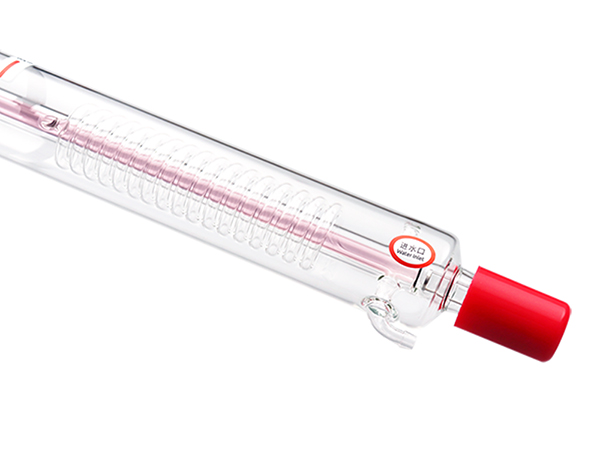

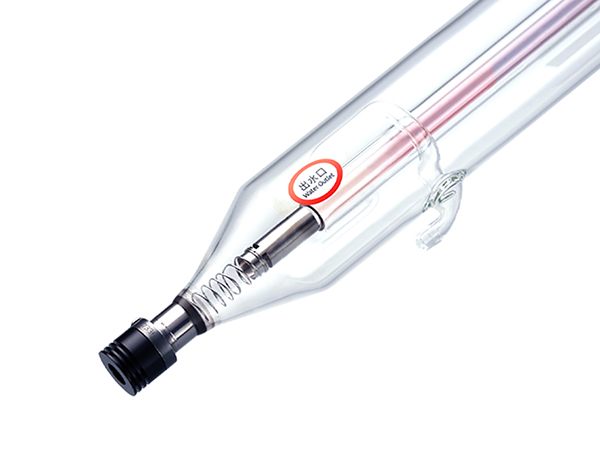

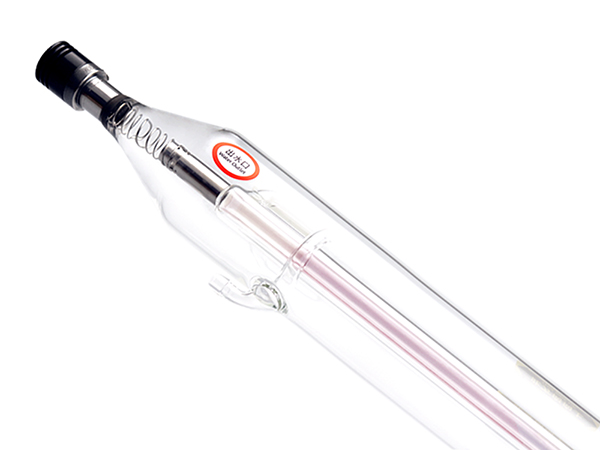

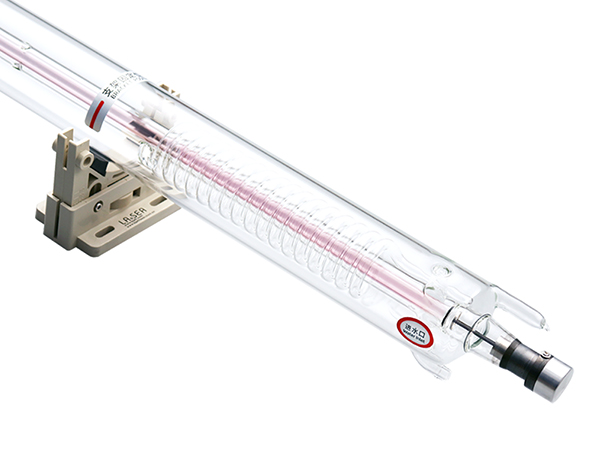

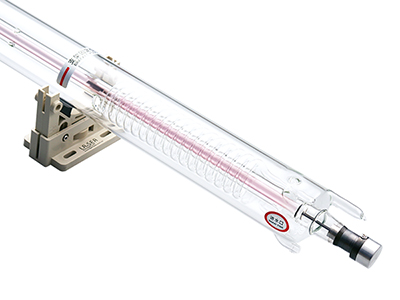

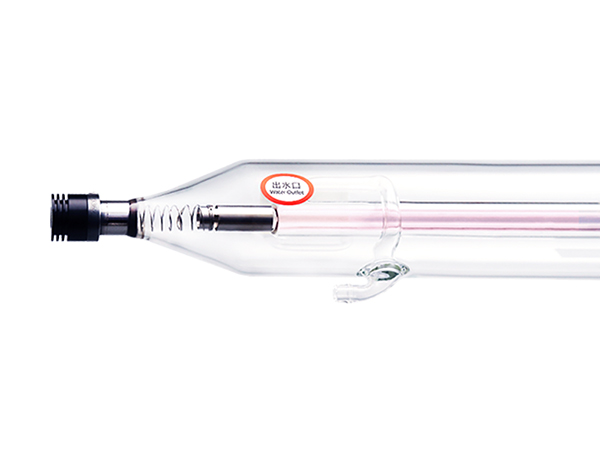

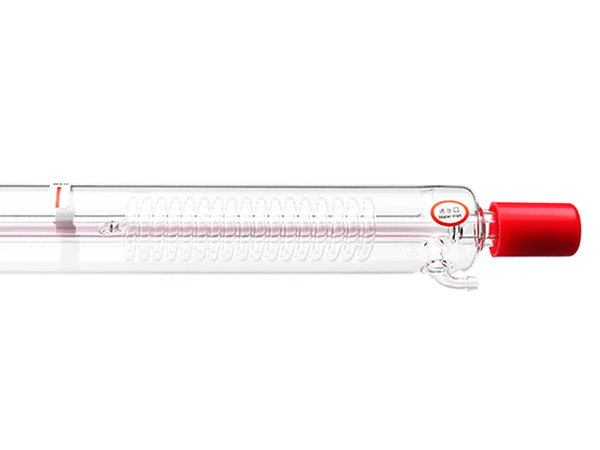

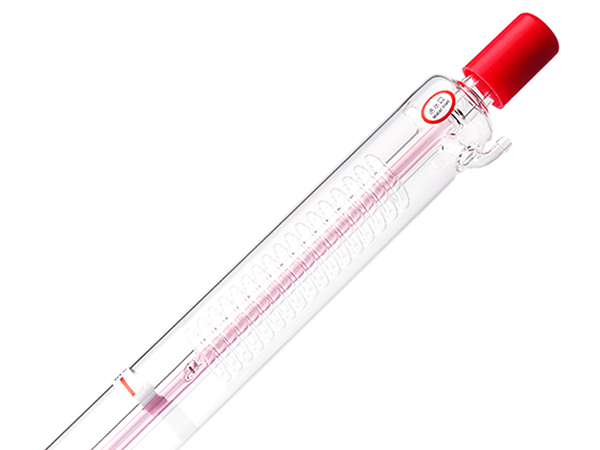

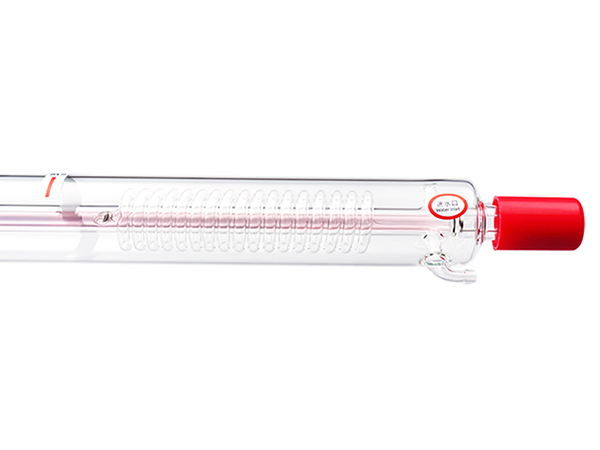

E Series CO₂ Laser Tube

  • Product Standard: Q/EFR/J 1.1-2021
  • Certifications: CE certificate, Chinese technical letters patent
  • Diameter: ⌀65±2 (mm)
  • Rated Power: 75-140 (W)
  • Peak Power: 90-170 (W)
Request a Quote
Parameters
Model Length(mm) Diameter(mm) Rated Power(W) Max. Power(W) Warranty(Day) Catalyst
E1 1100±20 ⌀65±2 75 90 360 Yes
E2 1250±20 ⌀65±2 90 100
E4 1400±20 ⌀65±2 100 130
E6 1650±20 ⌀65±2 130 160
E7 1750±20 ⌀65±2 140 170
Package Size
Model Packing Dimensions (L*W*H)(cm) Net Weight (kg) Gross Weight (kg)
E1 Single Packing 145*32*34 2.5 6
E2 Single Packing 145*32*34 2.5 6
E4 Single Packing 165*32*34 2.8 7
E6 Single Packing 190*32*34 3.2 8
E7 Single Packing 191*32*34 3.2 8
Operating Condition
  • Cooling method: Water cooling
  • Cooling liquid: clean water
  • Flow rate: 3-5L/min
  • Standard water temperature: 10℃-40℃
  • Ambient temperature: 2℃ -40℃
  • Ambient humidity: 10-60%
Features
  • The advanced Glass-to-Metal Sealing technology has extremely high structural stability and better consistency of the non-adjustable optical resonator;
  • Made in IIVI Singapore factory with global optical coating standard, the output is more stable;
  • Germany SCHOTT core vacuum discharge tube, high-durability nano-material catalyst coating, extremely low sputtering rate and diffraction rate, and extremely stable working response without fluctuation;
  • The laser beam has high taper, smooth taper curve, more concentrated energy. The laser beam mode can reach Quasi-TEMOO, and the cutting speed is faster;
  • The CO₂ laser tube has small size, high building accuracy, advanced processing, high material configuration, and extremely cost-effective;
