Enhanced Laser Tube
Enhanced Laser Tube Enhanced Laser Tube

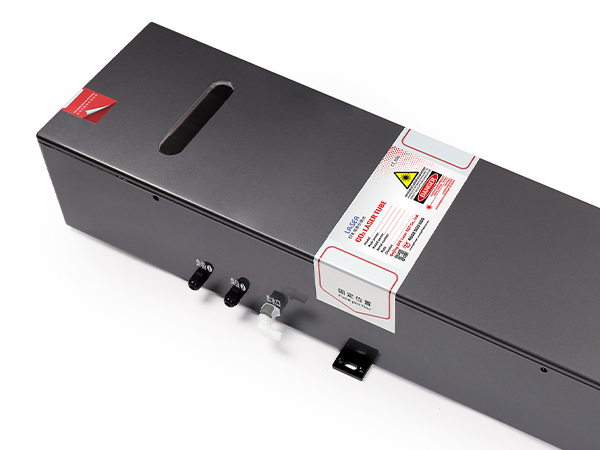

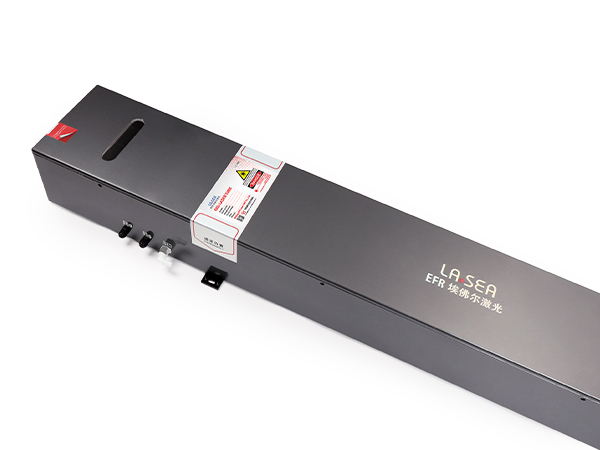

X300-Ⅰ Enhanced Laser Tube

  • Product Standard: Q/EFR/J 1.1-2023
  • Certifications: CE certificate, Chinese technical letters patent
  • Size: 1780*260*160 mm
  • Rated Power: 260 W
  • Peak Power: 300 W
Request a Quote
Parameters
Model Size Output Power Peak Power Warranty Period Catalyst
X300-Ⅰ 1780*260*160mm 260W 300W 360 days yes
Features
  • PVC shell offers multiple features of high-pressure resistance, aging resistance, flame retardancy, high strength, robust structure, good formability and exceptional adaptability to various industrial applications.
  • Sight glass is available for monitoring working status, ensuring maintenance-free, convenient and efficient operation.
  • High-voltage connector ensures quick connection, exclusive resistance to high voltage, and easy to use.
Operating Condition
  • Cooling method: Water cooling
  • Cooling liquid: clean water
  • Flow rate: 3-5L/min
  • Standard water temperature: 10℃-40℃
  • Ambient temperature: 2℃ -40℃
  • Ambient humidity: 10-60%
Package Size
Model Packing Dimensions (L*W*H)(cm) Net Weight (kg) Gross Weight (kg)
X300-1 Single Packing 191*32*34 16 19
Applications
  • Thin metal cutting
    Thin metal cutting
  • Acrylic cutting and engraving
    Acrylic cutting and engraving
  • Laser engraving
    Laser engraving
  • Die board cutting
    Die board cutting
