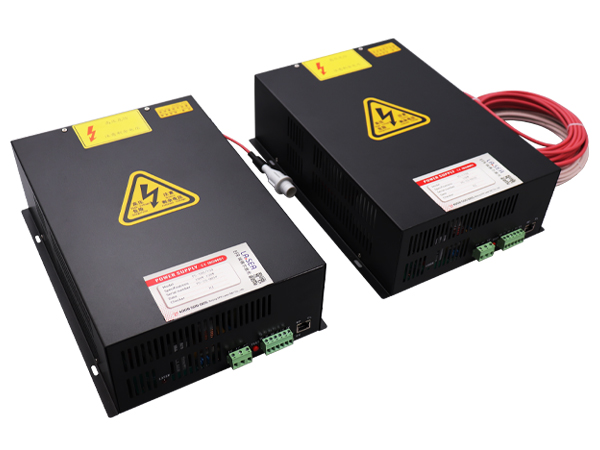

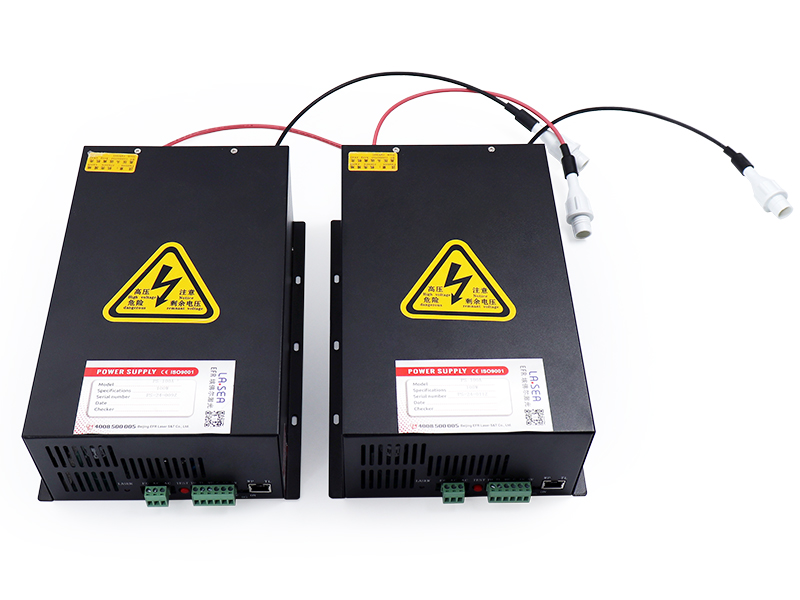

CO₂ Laser Power Supply, PS

Parameters

Model	PS-100A	PS-100/150A
Input Voltage	AC90-250V
AC Frequency	47--63Hz
Max. Input Power	700W	950W
Max. Input Current	7A	9A
Max. Output Voltage	45KV	55kV
Max. Output Current	35mA	35mA
Efficiency	≥90% (at full load)
MTBF (mean time between failures)	≥10000 hours
Response speed	≤1mS (from the switch signal is given to the output current up to 90% of the set current)
Withstand voltage	Input-output, input-shell: AC1500V 10mA 60s; Output negative pole is connected with the shell.
Control Interface	TTL level switch control, the effective high or low level can be selected (see the description of the control terminal for details)
Working environment	Working temperature: -10~40℃ Relative humidity: ≤90%
Cooling	Forced air cooling
Dimension (L*W*H) (mm)	295*200*97	395*189*111
Weight	2.7kg	4.6kg
Shell Color	Black

Features

• Targeted design: power supply specifically designed for high power CO2 laser tube of 200W-800W.
• Voltage stabilization: provided with power factor correction (PFC) function, it is compatible for different input voltage within a range of AC90-264V, 50/60Hz.
• Strong power: when the input voltage is within an accepted range, it maintains a constant current of up to 45mA.
• High safety: designed with open circuit protection function, this CO2 laser power supply can protect laser equipment from damage caused by no-load condition, thus ensuring safe operation while significantly prolonging the service life of the power supply.
• Simple laser power control: the laser power can be controlled by both 0~5V analog signal and 5V PWM signal.
• Manual test function: it allows operator to quickly detect the fault of power supply and laser.
