CO₂ Laser Tube
CO₂ Laser Tube CO₂ Laser Tube CO₂ Laser Tube

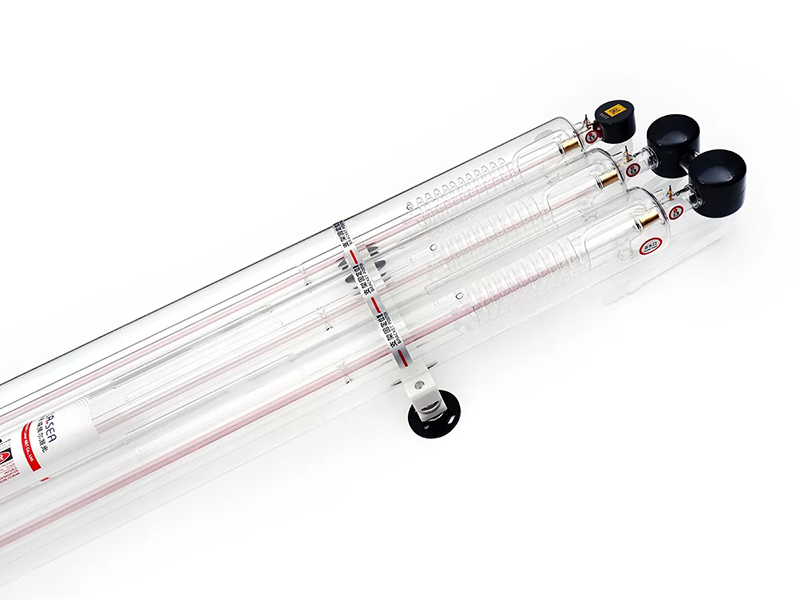

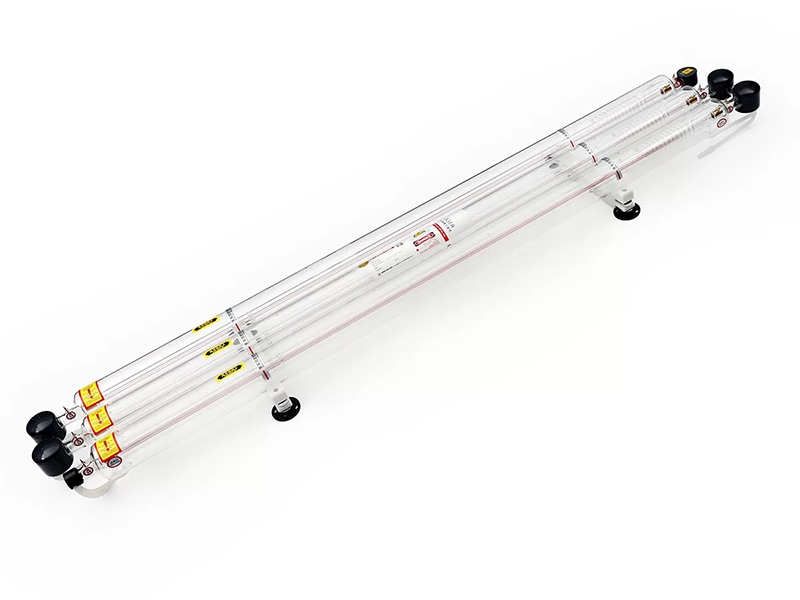

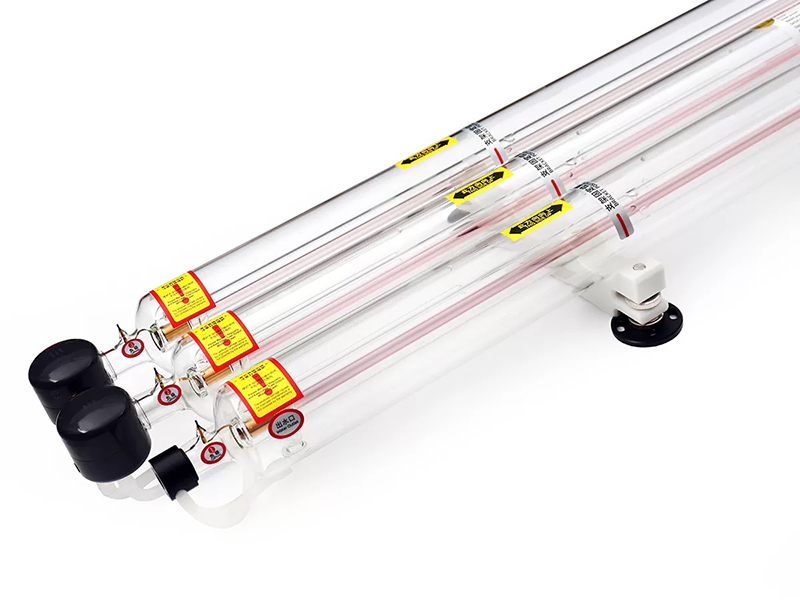

F450 Series CO₂ Laser Tube

  • Product Standard: Q/EFR/J 1.1-2023
  • Certifications: CE certificate, Chinese technical letters patent
  • Size: 1760±20*285*116mm
  • Rated Power: 400 (W)
  • Peak Power: 450 (W)
Request a Quote
Parameters
Model Size Output Power Peak Power Warranty Period Catalyst
F450 1760*285*116mm 400W 450W 360days yes
Features
  • Single-tube and double-tube output can be freely switched, and the output power can be adjusted within the range of 50W to rated power.
  • A dedicated power supply is configured and the actual output power is adjustable (dedicated power supply and conventional power supply are used together).
  • The optimal structure design of U-shaped resonator makes the beam more focused and efficient, resulting in a stable output of high power efficiency.
  • II-VI total reflector and output mirror coupled with independently developed laser lens water cooling system not only provide highly efficient and stable output power but also ensure less power fluctuation, significantly improving the cutting speed and cutting thickness for both metallic and non-metallic materials.
  • Strict quality control is guaranteed by using power meter and spot analyzer imported from Israel, enabling each laser tube to be featured by high power and excellent spot quality therefore achieving quasi-TEM00 fundamental mode.
Operating Condition
  • Cooling method: Water cooling
  • Cooling liquid: clean water
  • Flow rate: 3-5L/min
  • Standard water temperature: 10℃-40℃
  • Ambient temperature: 2℃ -40℃
  • Ambient humidity: 10-60%
Package Size
Model Packing Dimensions (L*W*H)(cm) Net Weight (kg) Gross Weight (kg)
F450 Single Packing 192*41*43 11 19
